Activity Report for the Period
September 14 - October 11, 2001
Trip Summary
During this period, there were 7 reef construction trips conducted. Concrete Rubble was placed in FH-6, FH-12 and FH-2. MGFB's first "Reef Complex" is being constructed in FH-2.

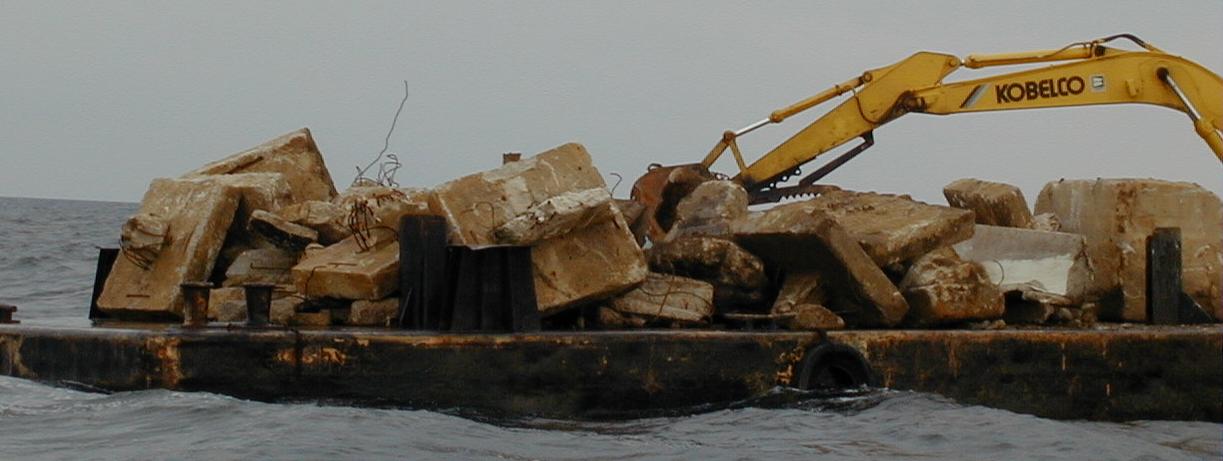

Rubble Deployments

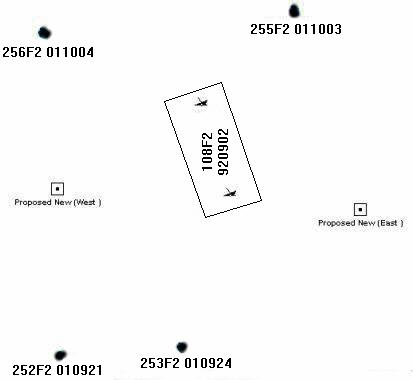

The first deployment was made in FH-6 between the C-1 and C-2 Liberty Ship hulls. The second deployment was made in FH-12 just north of the site marker buoy. The next 5 deployments were made in FH-2. One deployment was made near the FH-2 site buoy to augment the existing small MPCo pipe reef. Four deployments were made around the Northeast Barge "E" OR-3808, ID 108F2 920902, located at 30°05.38'N/88°33.23'W, to form a "Reef Complex", a term used to describe a more efficient reef system whereby smaller "satellite" reefs are constructed around a larger reef at a distance that makes them perform somewhat individually but also works together. Our target distance is around 300 feet. Some species will move between the individual reefs and others will remain resident on individual reefs. The coordinates and IDs of the deployments are summarized as follows:
ID DATE LAT/LON LORAN Remarks
===== ===== =============== =================== ========================
250F6 010918 30°01.876/88°41.672 12355.3/47030.2/29516.7 61'SD, Tide=1.2', SW of C-1 Hull
251F12 010919 30°02.182/88°45.647 12315.2/47031.3/29477.8 44'SD, Tide=0.9', N of Site Buoy
252F2 010921 30°05.322/88°33.291 12440.0/47044.5/29615.7 435'@43° to SW Corner of 108F2
253F2 010924 30°05.325/88°33.248 12440.5/47044.5/29616.3 270'@320° to SW Corner of 108F2
254F2 010928 30°05.225/88°33.776 12435.1/47044.0/29610.6 Scattered NE/SW Line near FH2 buoy
255F2 011003 30°05.429/88°33.208 12440.9/47044.8/29617.0 275'@220° to NE Corner of 108F2
256F2 011004 30°05.422/88°33.297 12439.9/47044.9/29616.1 250'@120° to NW Corner of 108F2
